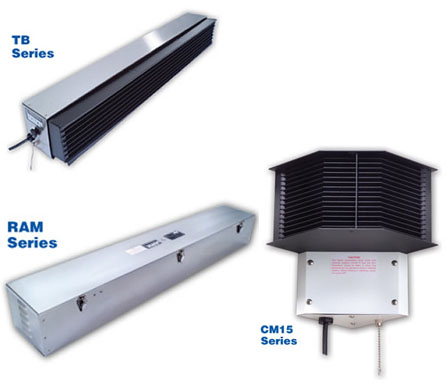

Upper Air TB/RAM/CM Series
The TB Upper-Air Series is available in three sizes (providing 100, 200 and 300 square feet of coverage), and operate from 110-277 VAC at 50 or 60 Hz, allowing installation flexibility to accommodate virtually any room or building layout. Multiple fixtures can be used to cover areas larger than 300 square feet. TB Upper-Air Series fixtures are designed for easy access lamp changes (simply unscrew two large thumbscrews on the sides and drop the hinged louver down for easy lamp access). TB Upper-Air Series lamps are rated for two-year continuous operational life with approximately 20% drop in UVC output at end of lamp life.
The RAM Upper-Air Series features dual lamp configurations with fan motors pulling the air through the stainless steel housing. This tamper proof fixture is available in two high output lamp sizes (14” or 36”), with two voltage options (115 or 230VAC), allowing installation flexibility to accommodate virtually any room or building layout. RAM Series fixtures are also designed for easy access lamp changes (simply unlatch the cover). RAM Series lamps are rated for two-year continuous operational life with approximately 20% drop in UVC output at end of lamp life.
CM 15 Upper-Air units are designed to mount in corners of rooms where TB Series units are not desirable. A single CM 15 unit can cover 75-100 square feet, depending on the application. The CM 15 is easily accessed for lamp replacement (simply remove a single fastener on the top of the unit and slide off the louver). CM 15 lamps are rated for 9 ,000 hours effective lamp life (approximately one-year ).
Two-year (17,000 hour) guarantee on lamps with only 20% decrease in output over the two years (9,000 hours on CM 15 lamps).
Five-year, non-prorated warranty on the ballasts.
Continuously clean upper air in rooms, reducing airborne and/or bio-aerosol transmission of bacteria, viruses, and fungi.
Produce no ozone or other secondary contaminants.
