Misting System Pumps
| Models | O88-16-200-1, O88-16-200-3, O88-16-400-3 |
| Flow Rates |
44 – 2.2 GPM / 1.7 – 8.3 LPM
@ 60Hz .36 – 1.83 GPM / 1.36 – 6.9 LPM @ 50Hz |
| Dimensions |
Length 35” / 88.9 cm w/
filtration Width 24” / 61 cm Height 15” / 38.1 cm |
| Weight | 98 lbs / 44 kg |
| Supply Power |
200-240V, 1P, 50/60Hz, 18.7A
max continous, 26.4 max intermittent 200-240V*, 3P, 50/60Hz, 10.9A max continous, 14.4 max intermittent 380-480V*, 3P, 60Hz, 5.1A max continous, 7.5 max intermittent 380-480V*, 3P, 50Hz, 5.9A max continous, 8.7 max intermittent |
| Motor | TEFC, 3P, 2HP |

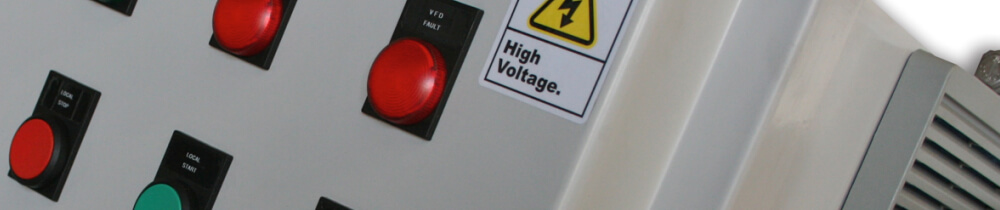

| Control PANEL |
NEMA enclosure, Liquid tight
connections 19.5″ x 19.5″ x 8″ 50 cm x 50 cm x 20 cm Terminal connection Conduit entries available |
| Inputs |
1 analog 0-10 VDC for speed
control in variable pressure
applications 3 relay contact closures (2 for constant pressure applications, four speed settings, 1 for start command) |
| Diagnostics and Protection |
VFD fault indicator
including motor overload
faults Inlet and outlet glycerin filled gauges Hour meter showing system usage |
| Discharge | Variable pressure -or- constant pressure capability up to 1200 psi / 83 bar |
| Drain | Pressure release drain |
| Water Supply | Supplied w/ female garden hose fitting, 1/2″ ID hose |
| Filtration | Dual filtration, scale inhibiting |
| Enclosure |
Polyethylene Superior aesthetics Sound absorption UV protection Integrated oil pan for service |
The Oasis 16 is the current version of the most sophisticated high-pressure pump on the market in its class, with this style and footprint. With our “Total Flow Control” design, the Oasis is energy and water efficient, using only as much water and power as necessary during operation and based on user defined parameters.
The Oasis is a variable frequency drive unit and will operate in constant pressure or variable pressure applications. It will operate multiple zones independently without running the chance of damaging pump head seals due to excessive bypass. It also can be used to adjust cooling power or visual effects based on performance or visual requirements. Additionally, with several input options, the Oasis allows for remote control, from facilities management systems to weather stations or theatrical show controls.
The word “oasis” was first found in one of the ancient Egyptian dialects, meaning “dwelling place”. Often used as a stopping place between trade routes, the ancient oases were a highly valued resource and haven for supplies, food, and water. Military and political agencies near deserts coveted these valuable refuges, often battling over ownership. As a stopping place for rejuvenation, a center for the many incoming and outgoing travelers in the desert, and a resource sanctuary where water and energy can be replenished, our Oasis high-pressure misting and fog pumps mirror the propensity of this haven. Like the travelers coming and going, the Oasis can deal with multiple inputs to manage a vast array of complex systems, from weather stations to facilities management systems. It resembles a city marketplace, full of different dynamics and needs. The sanctuary these ancient oases created, the Oasis can assist in creating a luxurious outdoor environment while integrating a magnificent design. Maintaining the same footprint as the Mojave and Sahara with the same elaborate control as the Atacama, the Oasis is our highly efficient high-pressure misting and fog pump for commercial, industrial, and special effects applications.
