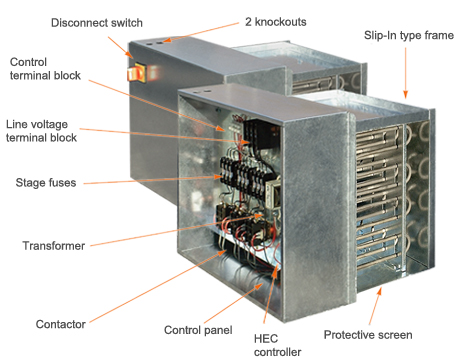

Tubular and Finned Tubular – Electric Heaters
Up to 13 kW per sq.ft. (Tubular)
Up to 15 kW per sq.ft. (Finned Tubular)
Heating elements not in direct contact with air
Element of U or W shape:
-incoloy 800 (Nickel alloy)
-Stainless Steel 304 or 316 (optional)
Integrated HEC controller
The Tubular and Finned Tubular heater type offers an excellent mechanical resistance, suited for demanding environments. These elements are less sensitive to humid and dusty environments but offer a slower response time.
Tubular Elements:
- incoloy 800 (Nickel alloy)
- Stainless Steel (optional) tube with a diameter of 3/8"
(9.5) with heating coil in magnesium oxide powder
Finned Tubular Elements:
- Steel or stainless steel (optional) fins installed on the
tube to allow a higher heat dissipation capacity.
