Misting System Pumps

Models M20, M44, M88
Flow Rates M20 5 GPM
M44 1.1 GPM
M88 2.2 GPM
Dimensions Length 35” / 88.9 cm w/ filtration
Width 24” / 61 cm
Height 15” / 38.1 cm
Weight 108 lbs / 49 kg (M20)
111 lbs / 50 kg (M44, M88)
Supply Power 115V, 1P, 60Hz
NEMA 5-15 Plug
Motor TEFC 1HP, FLA 9.08 (M20)
TEFC 2HP, FLA 18.8 (M44, M88)
Control Enclosure Interior, dual protected
Inputs Contact closure
Diagnostics and Protection Inlet and outlet glycerin filled gauges
Hour meter showing system usage
Low / No water pressure safety cut off
Time delay re-start to avoid short cycling
Thermal overload protects the motor from overheating
Thermal relief valve protects the pump against premature seal failure
Discharge 1000 psi factory setting
69 bar factory setting
Drain Pressure release drain
Water Supply Supplied w/ female garden hose fitting, 1/2″ ID hose
Filtration Dual filtration, scale inhibiting
Enclosure Polyethylene
Superior aesthetics
Sound absorption
UV protection
Integrated oil pan for service

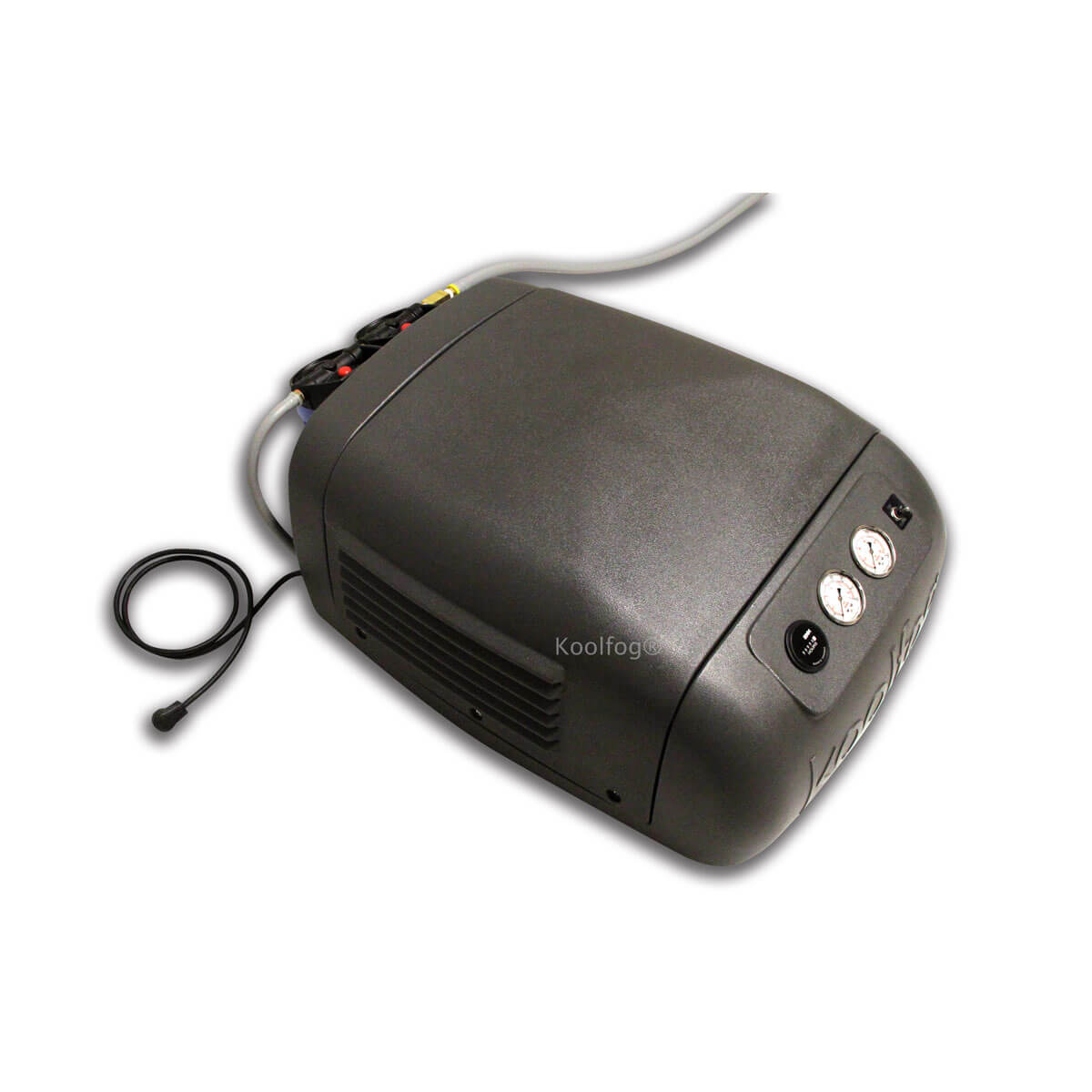

Our Mojave fog and mist system pump is our most versatile pump line. Integrated into almost any setting, Mojave pumps include a feature set that you will not find anywhere else. Many high-pressure misting pump manufacturers focus on supplying the market with the lowest price. We decided we could do better.

Beginning from the inside out, each Mojave pump component was chosen to resist the stressors from residing in extreme environments. From IP-rated switches that protect against dust and water intrusion to fittings rated to high pressure, at Koolfog, we favor reliability over cost-cutting measures.

It isn’t about the easiest path but developing a reliable brand supporting long-term client relationships.

Maintaining your high-pressure pump shouldn’t be an afterthought; you should ensure your system will serve you for years. Therefore, we’ve integrated three gauges so you can set preventative maintenance schedules and troubleshoot external issues easily and confidently. A discharge pressure gauge allows you to monitor your system’s output pressure. A supply pressure gauge tells you how steady your water supply is. An hour meter helps you track usage and schedule service intervals.

Each Mojave mist pump is designed with a low water pressure cut-off switch so that your investment is protected if your water supply is ever turned off but your pump is turned on. Dual water filtration systems tubing and nozzles clear from debris and sediment blockage. All features were designed to balance quality with performance.

A desert close to home, the Mojave namesake was influenced by the region in which Koolfog Headquarters is located. Completely enclosed by mountains, the Mojave Desert is located in Southern California and sprinkled with the incredibly unique Joshua Trees, which can grow root systems that can reach up to 36 feet out. One single tree can survive the harshest conditions for hundreds of years, some reaching a thousand. Winds from the Los Angeles basin and other coastal areas fuel our local wind farms; the piercing sun fires our photovoltaic panels. These elements capture the inspiration behind the Mojave namesake: a mist pump with endurance in mind, cutting-edge innovation, enclosed from elemental stress, centralized in a familiar landscape.

The Mojave mist pump (or fog pump) offers versatility in design and the highest quality in engineering and represents the pride we take in our region. With a selection of components and features that exude pride in workmanship and quality, we offer a mist pump that leads the market in residential, commercial, and industrial applications.
